AIM EVO5 Data logger

€2 304,00
Price incl. VAT (19%) €367,87
In stock
Product Details

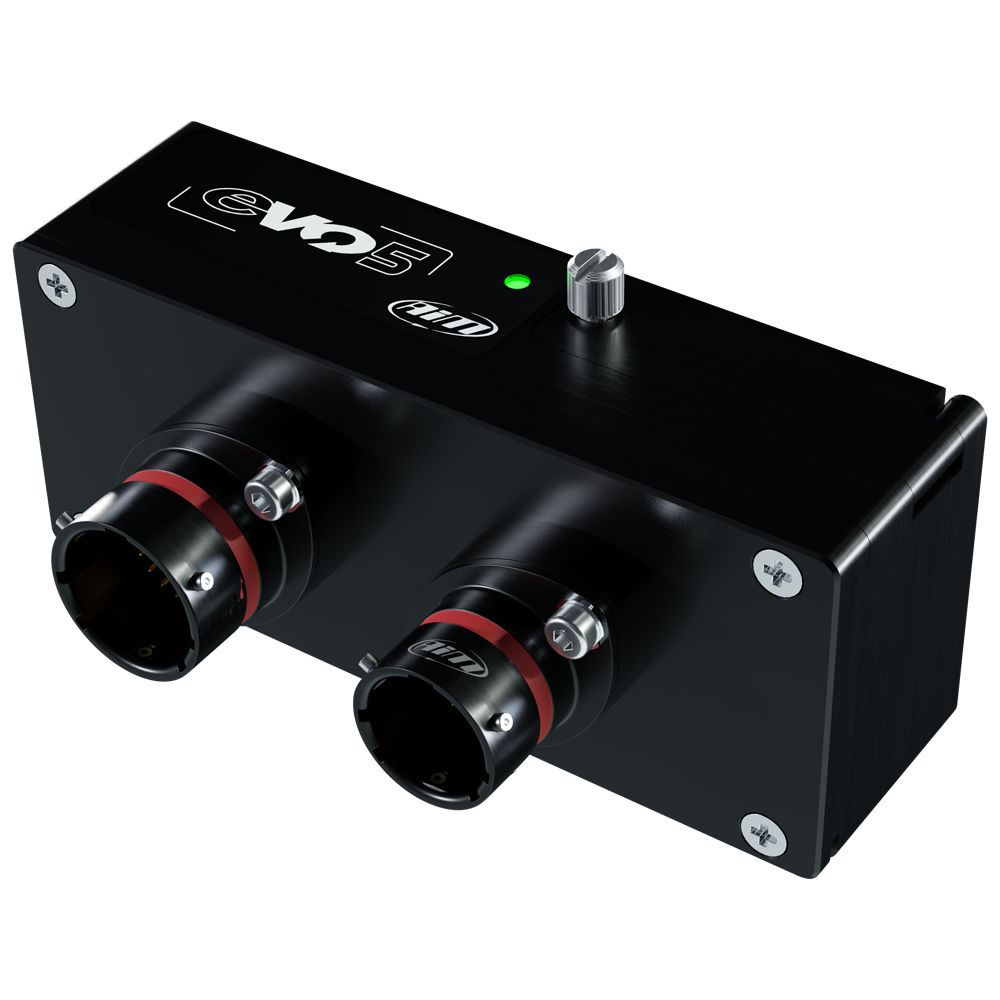

The AiM EVO5 Motorcycle Racing Data Logger features two multi-channel Motorsport connectors. It connects to the vehicle's ECU via CAN, RS232 or K-Line. The GPS09 Module is also included with this kit. With a range of cable lengths available to suit your requirements.

EVO5 is the evolution of the traditional Data Logger, with its compact aluminium body, EVO5 can be easily placed in any vehicle. Its configuration with Race Studio 3 software is simple and immediate.

The incoming data from your ECU via CAN, RS232 or K-Line, the internal accelerometer and gyro, and the GPS Module are all recorded by the EVO5. The unit can also accept digital or analogue inputs. Sensors can be connected to 8 configurable analogue channels, to the RPM input and up to 4 wheel speed inputs.

Key Features
  • Two multi-channel connectors
  • GPS Module included
  • ECU connection to over 1000+ ECUs
  • CAN output
Two Digital Outputs

EVO5 features two digital outputs. The built-in digital outputs can be configured to automatically run external systems when an event happens. A good example would be the activation/deactivation of a cooling fan when a certain temperature is met.

CAN output

With the CAN Output, you can send messages directly to an existing CAN network to improve the range of vehicle control possibilities.

Two Multi-Channel Motorsport Connectors

Straightforward, the 37 pins connector harness supplied with the kit offers your main applications such as power, CAN, etc

A second 22 pin connector harness is available for functions like CAN2 and digital outputs. This harness is (Sold Separately) See Accessories Tab

Endless Expansion Possibilities

Add expansion modules via the built-in CAN Bus: Channel Expansion

It permits you to add 4 0.5 Volt analogue channels for pressure, Temperature Sensors and potentiometers. Two of these channels can be configured to receive digital inputs like wheel speed.

LCU-One CAN

Wideband Lambda controller LCU-One, with Bosch LSU 4.9 probe, providing all Air/Fuel data and lambda value, allows to perfectly tune the carburetion.

SmartyCam HD Cameras

The onboard cameras overlay on videos the data sampled by your logger.

Displays

To make sense of all the incoming data, the EVO5 can be connected to the GS Dash.

Memory Module

The Memory Module is a small SD Card holder that can be connected via CAN-Bus to your AiM logger to record the data during your tests.

Technical
  • ECU Connection: CAN, RS232 or K-Line to 1000+ industry-leading ECUs
  • External Modules: GPS Module, Channel Expansion, TC Hub, Lambda Controller, SmartyCam HD
  • Analogue Inputs: 8 fully configurable - 0-5V, 0-12V, K thermocouples. Max freq 1 kHz each
  • Digital Inputs: Coil RPM and 4-speed inputs
  • Intertial Platform: Internal 3 axis ±5G accelerometer + 3 axis gyro
  • Digital Outputs: 2, up to 1 Amp each
  • Second CAN: Yes
  • WiFi Connection: Yes
  • Internal Memory: 4 GB
  • SD Card: Internal - up to 128 GB ( Sold Separately)
  • Connectors: 2 Motorsport connectors
  • Body: Anodized Aluminium
  • Dimensions: 114.4 x 47.2 x 58.8mm
  • Weight: 300g
  • Waterproof: IP65
