Solo 2 DL With ECU Connection
AiM Solo 2 DL is the most precise GPS lap timer with the ability to show lap times live as you drive due to data from two satellite constellations from anywhere globally by using GPS and Glonass, which ultimately gives a significant improvement in data speed and positioning precision.
Start up time is reduced to seconds and lap times are accurate to a tolerance of two-hundredths of a second.
The Solo 2 DL can be connected to the vehicles ECU to obtain various data from the sensors you have fitted to your vehicle. Solo 2 DL manages all the hardware ECU connections and all the communication lines: depending on whether you want to connect to the ECU using the OBDII port or directly to the ECU through the CAN/RS232 channel. If the ECU protocol is not supported connection to the Solo 2 DL to a coil RPM will provide a digital input delivered from square wave signals or pulse signals.
The sampled data you record depends on the actual ECU, typically includes RPM, engine load, throttle position (TPS), oil, air, water temperature, oil pressure, battery voltage, speed, gear and lambda value (air/fuel). The list of ECUs is constantly updated.

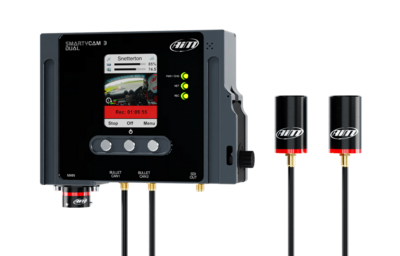

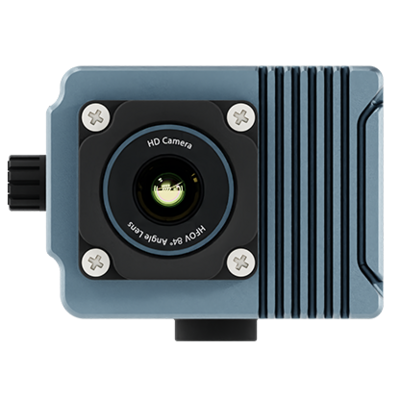

Add a SmartyCam HD/GP HD camera to create an even mightier system to help provide you with incredible videos that include all the technical information to help improve your performance.
Solo 2 DL gives instant speed; timing splits live data and predictive lap times.

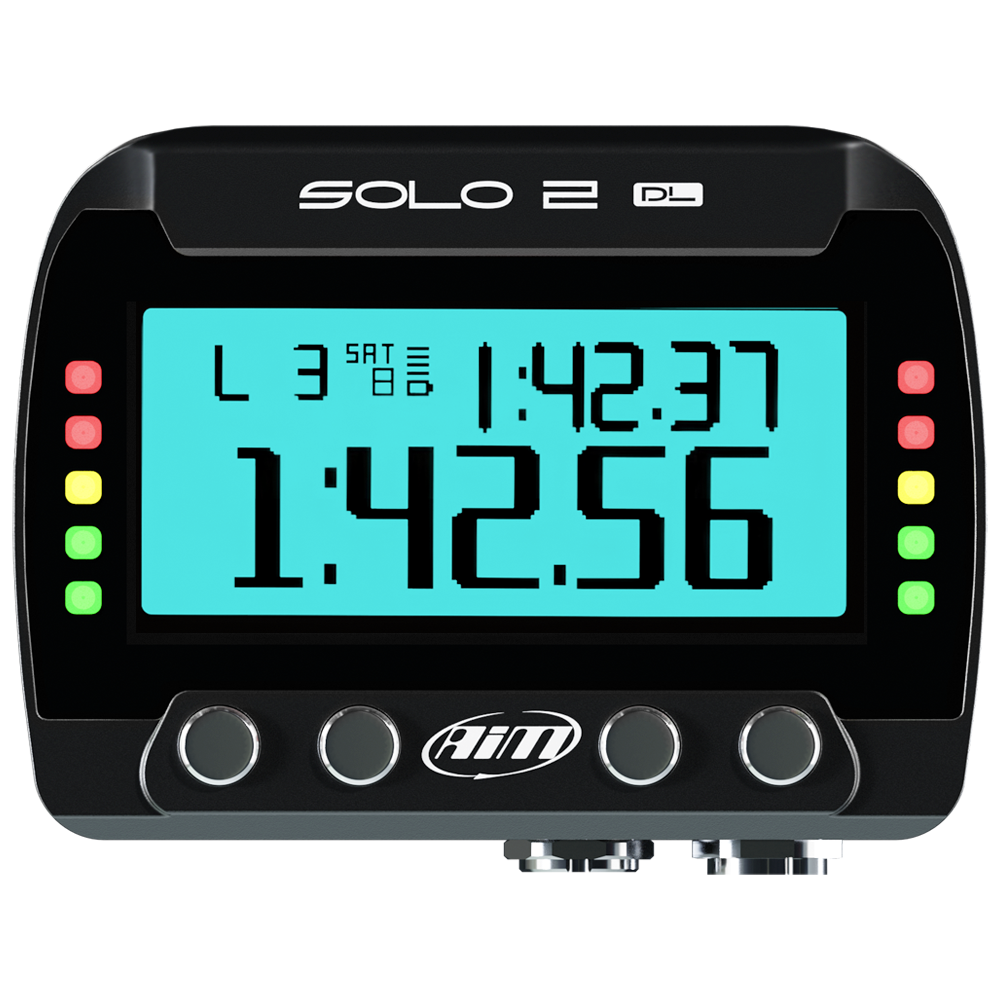

The Solo 2 DL has a sharp, high contrast display which helps drivers easily identify the data displayed on the screen. The Solo 2 DL also features a selection of 7 different backlight colours, which you can select to suit your requirements.
The GPS technology provides better reliability from the predictive lap timing function, so you can see in real-time how your current lap compares to your best lap. The LEDs are also configurable to give a visual indication of whether you are quicker or slower. You can also build the layout of the display to show the data you want to see.
Solo 2 DL can be used for circuit racing and point to point or regularity events and performance tests such as 0-60mph. And just like the circuit racing mode, all the data is recorded and can be reviewed immediately after each race or test session.
Solo 2 DL allows you to create a new temporary or permanent track layout. Whether it's a point to point run for rallying or a closed-loop track.
With over 4000 tracks pre-loaded from around the world. As soon as it's switched on, the Solo 2 DL identifies its position. If the track is not one of the pre-loaded, Solo 2 will create a new one for you, and once you start to drive, it automatically recognises the start line coordinates of the track and starts sampling lap times every time you go past.
The Solo 2 DL has integrated Wi Fi. If you want to review your data in more depth, transfer your data securely and quickly onto a laptop or computer up to 50m away without the need for connectors and cables. You can then import the data into the Race Studio 3 software.
Add SmartyCams and a Lambda Control Unit to increase your data performance.
